INDUSTRIAL TRAILERS

Print

Allegheny Material Handling's line of Industrial Trailers include models and features to meet the needs of all major industries including Automotive, Basic Metals, Heavy Manufacturing, Rigging, Stamping, and more.

Our Four (4) and Eight (8) wheel "light-duty" trailers are ideal for warehousing, light manufacturing and automotive assembly plants. The units have load capacity ratings that range between 500 lb. and 10,000 Ibs. They include such features as fifth-wheel and automotive type synchronized steering arrangements, single or double end steering, flat steel, safety tread or hardwood deck surfaces. The trailers can be towed with as many as 8 units in a train.

Our "medium-duty" trailers are a proven utility trailer used for a wide range of applications and all industries. The majority of the units manufactured range in capacity from 5 Ton to 50 Ton. These units are equipped with eight (8) or sixteen (16) wheel designs and have automotive type synchronized steering arrangements. Both single-end and double-end steering arrangements are available and can be equipped with a towing tongue on either one end or both ends of the unit.

Our "heavy-duty" trailers are designed for handling the large and heavy loads found in the Steel, Automotive and Heavy manufacturing industries. With load capacities that range from 50 ton to 300 ton these Allegheny units are designed for the toughest job. In addition to designing the trailer to handle the load, they are designed for impact loading by overhead crane. In short, these trailers are designed to withstand the punishment of heavy industry. The units feature designs incorporating eight (8) to sixty-four (64) wheels, single-end or double-end steering arrangements and also have automotive type synchronized steering.

Allegheny's "minimum-height" trailers feature a trailer designs with load deck heights from 10" to 24". Our flat deck trailers are available with deck heights that range from 18" to 24" equipped with 16, 32 and 64 wheels. Our "drop deck" designs feature a load deck section between the wheels with a deck height as low as 10". These units are equipped with eight (8) and sixteen (16) wheel designs. All of these units are available with both single end or double-end steering arrangements and automotive type synchronized steering.

Click each image for a larger view.
4-Wheel Equipment Trailer 4-Wheel Roll Trailer
4-Wheel Supply Trailer

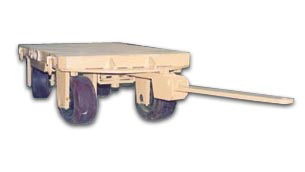

4-Wheel Equipment Trailer

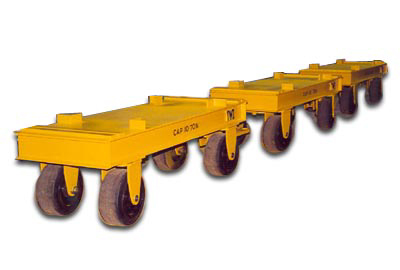

4-Wheel Roll Trailer

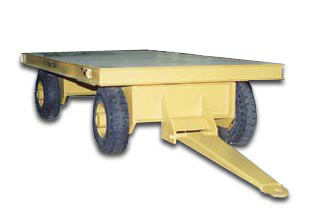

4-Wheel
Supply Trailer
 55 Ton Automotive Die Handling Trailer 4-Wheel Trailer 10 Ton Capacity  Automotive Die Handling Trailer 40 Ton Capacity

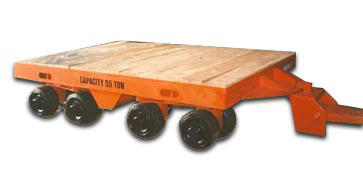

55 Ton Automotive
Die Handling Trailer

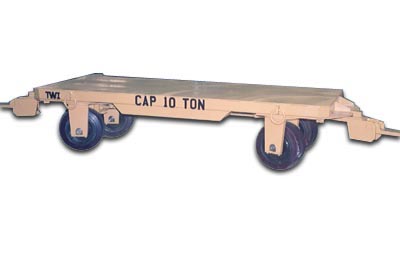

4-Wheel Trailer
10 Ton Capacity
Automotive Die Handling
Trailer 40 Ton Capacity
 Automotive Die Handling  Trailer 60 Ton Capacity Aluminum Ingot Handling Trailer 50 Ton Capacity
 55 Ton Automotive Die Handling Trailer
Automotive Die Handling
Trailer 60 Ton Capacity
Aluminum Ingot Handling Trailer
50 Ton Capacity
55 Ton Automotive
Die Handling Trailer
 Equipment Trailer 64-Wheels 300 Ton Capacity Drop Deck Trailer 50 Ton Capacity Flat Bed Supply Trailer 15 Ton Capacity

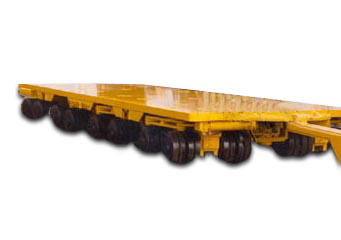

Equipment Trailer 64-Wheels
300 Ton Capacity
Drop Deck Trailer
50 Ton Capacity
Flat Bed Supply Trailer
15 Ton Capacity
 Low Boy Rubber Tired Supply Trailer  Paper Roll Trailer  Paper Roll Trailer 6 Ton Capacity
Low Boy Rubber Tired Supply Trailer
Paper Roll
Trailer

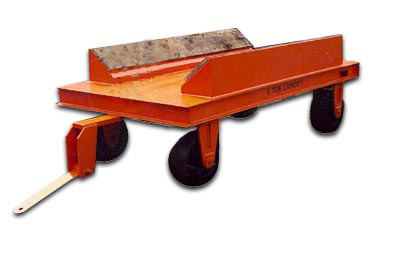

Paper Roll Trailer
6 Ton Capacity
 Platform Trailer 15 Ton Capacity  Platform Trailer 15 Ton Capacity  Platform Trailer 20 Ton Capacity
Platform Trailer
15 Ton Capacity
Platform Trailer
15 Ton Capacity
Platform Trailer
20 Ton Capacity
 Coil Trailer 30 Ton Capacity "Slab Deck" Automotive Die Handling Trailer 50 Ton Capacity  Slope Deck Billet Trailer 45 Ton Capacity

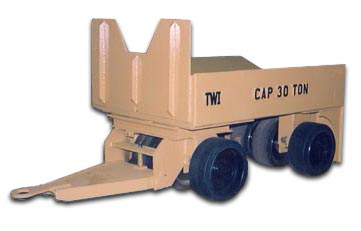

Coil Trailer
30 Ton Capacity
"Slab Deck" Automotive Die Handling Trailer 50 Ton Capacity
Slope Deck Billet Trailer
45 Ton Capacity
 "Slab-Deck" Trailer 32-Wheel 100 Ton Capacity  Side Dump Trailer Tilt-Deck Supply Trailer

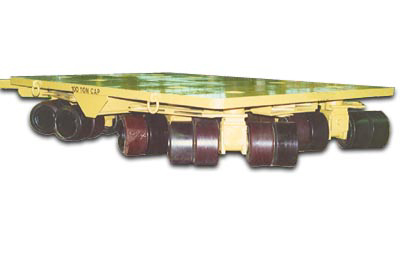

"Slab-Deck" Trailer
32-Wheel 100 Ton Capacity

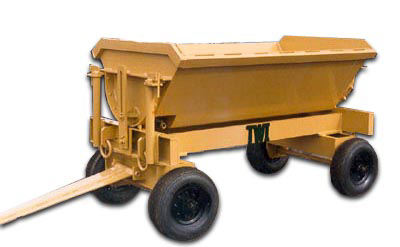

Side Dump
Trailer
Tilt-Deck
Supply Trailer

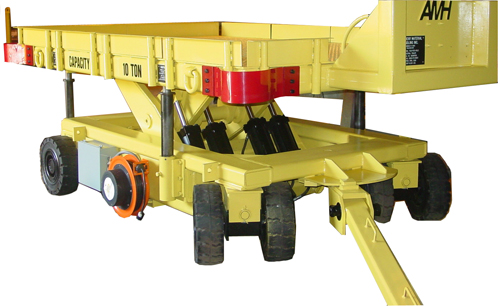

20,000lb. Scissor Lift Deck Trailer
